This guide helps you manage your analyses with Kiuwan.
If you have not run an analysis yet, check out here how to start a new analysis, with Kiuwan Local Analyzer.
Once the analysis is finished, go through the following steps.
Open the analysis log of a specific analysis

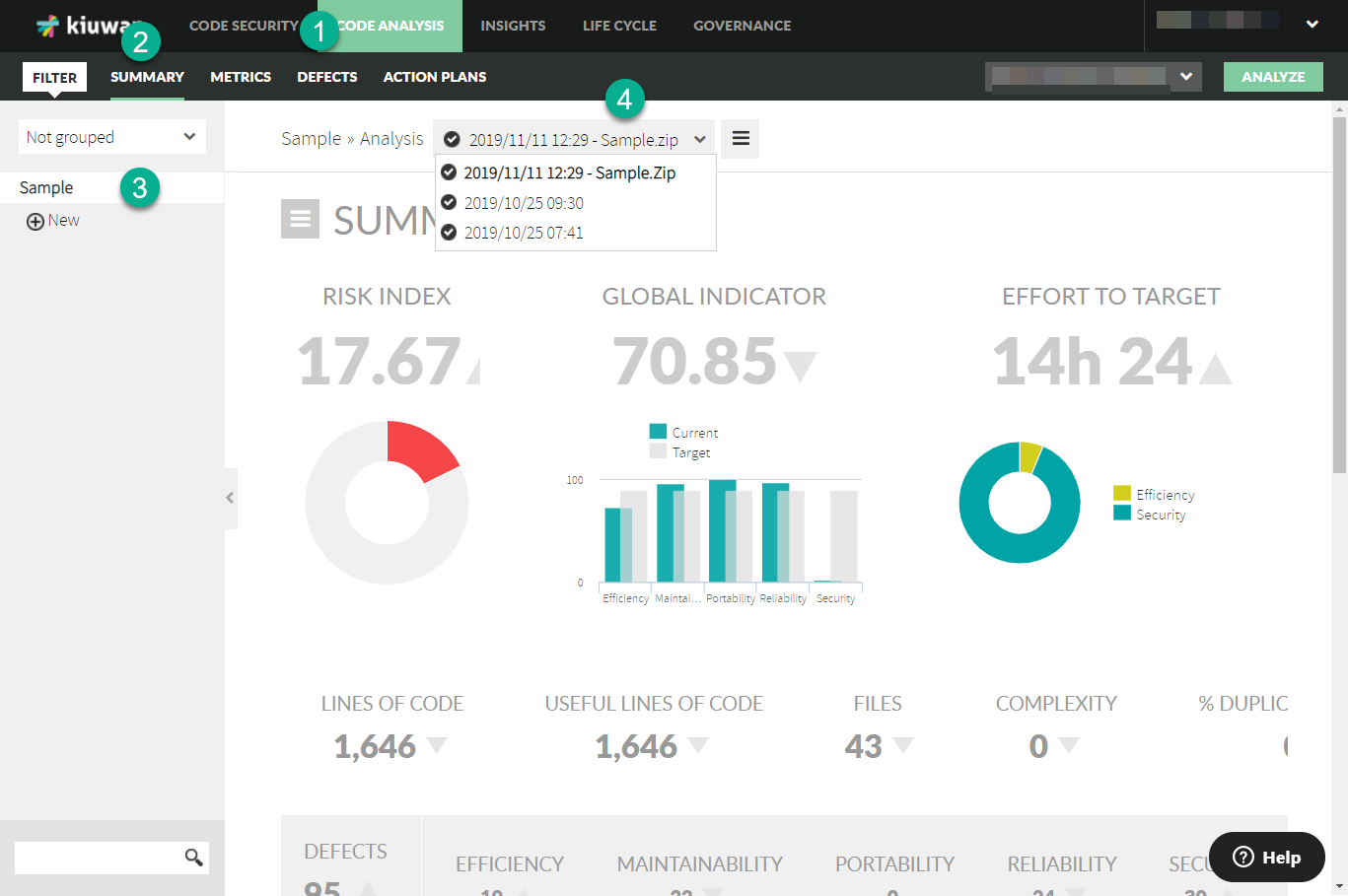

First, log into kiuwan.com.
-
Select Code Analysis from the main menu.
-
Select Summary.
-
Select the correct application on the left menu.
- Select which analysis you want to view.

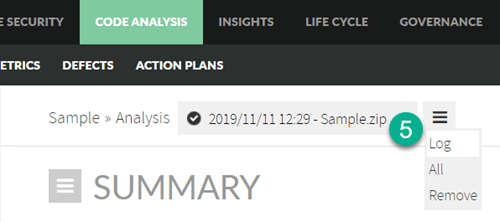

- Select Log from the hamburger menu.

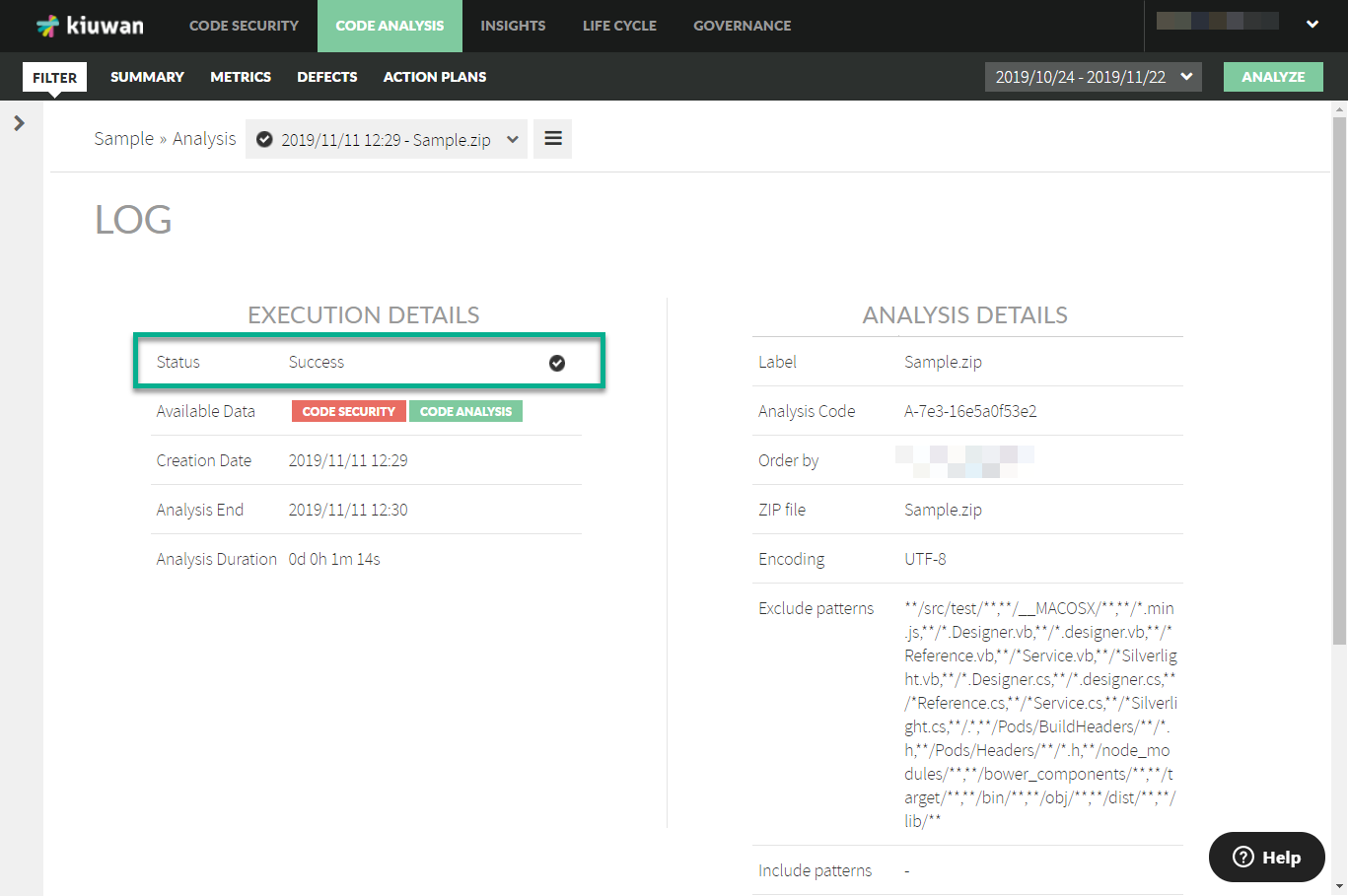

- In the new window, you can see in the Status field if the analysis was successful or not.
- If it fails, you will see an error code. Read more here at Analysis Error Code Reference.
View all analyses
- To see an overview of all analyses done on an application, select All from the hamburger menu

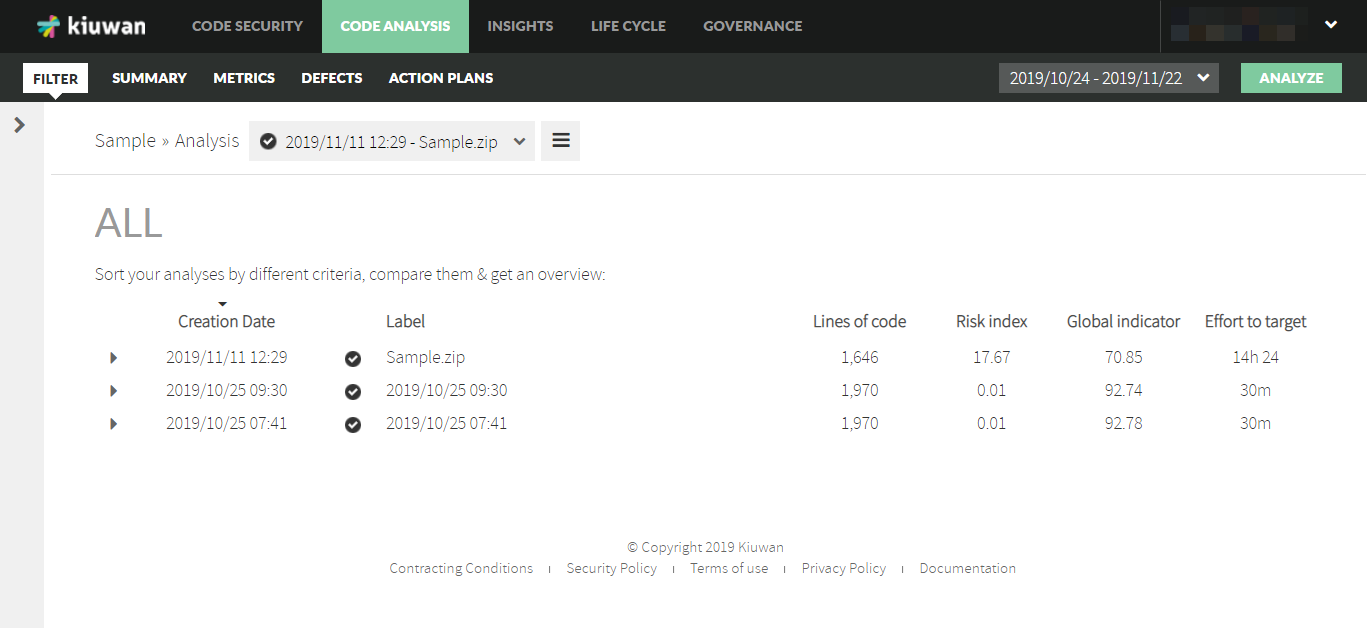

- In the new window, you can see the complete list of analyses that were run on the selected application.

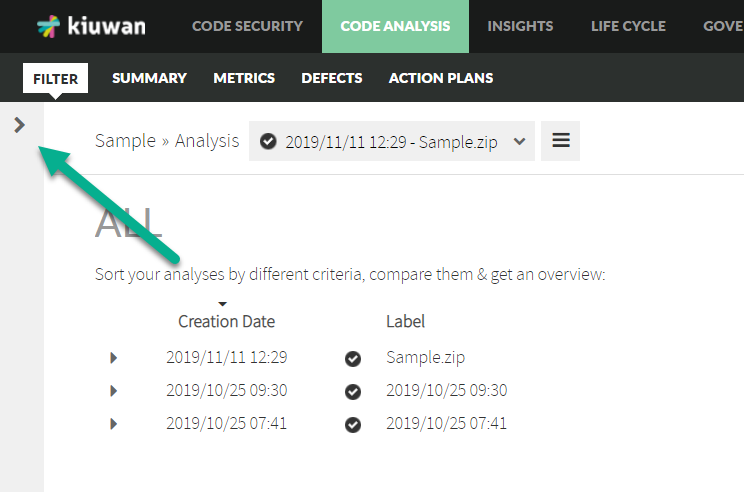

- To select a different application, click on the arrow on the left.
By default, the list is sorted by date. To change the sort order, click a different column header. The list can be sorted by label, lines of code, risk index, quality indicator, or effort to target.
Click on a specific analysis to display the dashboard, which has useful data such as:
- The number of files in that application.
- The lines of code that the application has.
- The values of the main quality indicators.
- Effort to target
- Quality indicator
- The position of that application in the ranking depends on its quality value.
- The distance to the top is measured in quality.
- The date of the last analysis run.
- The quality model used in that last analysis.
- The value of the complexity by function.
- The number of defects found and the number of those muted, if any.
- The duplicated code ratio.
- The graphing of the main quality indicators mentioned above.
- The graphing of the distribution in languages of the lines of code.
Remove an analysis
Kiuwan allows you to remove an analysis from your dashboard. This may be useful if you have performed a test analysis or if you want to delete an analysis you no longer need.
Warning: Removing an analysis is permanent. It cannot be undone.

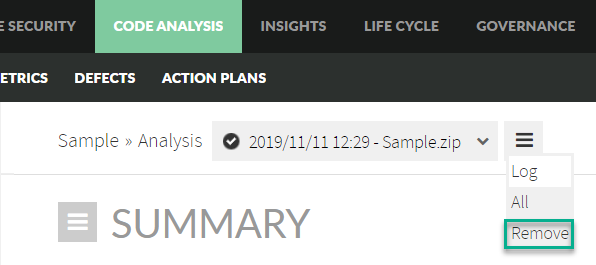

To remove an analysis, select Remove from the hamburger menu.
