Ruby on Rails and the Kiuwan Solutions

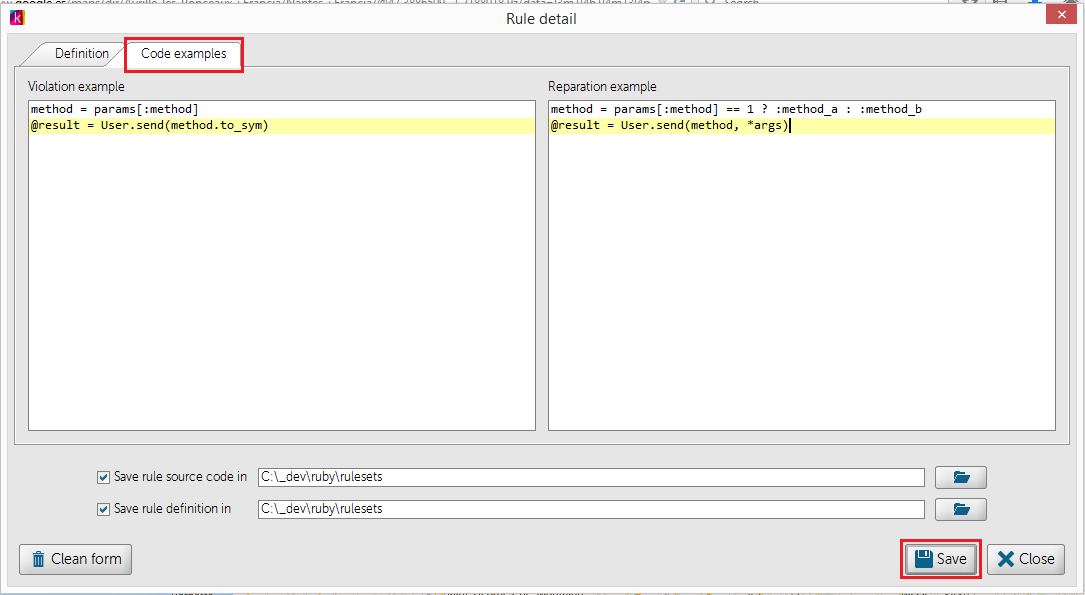

As extra help documentation, you can include some code examples.

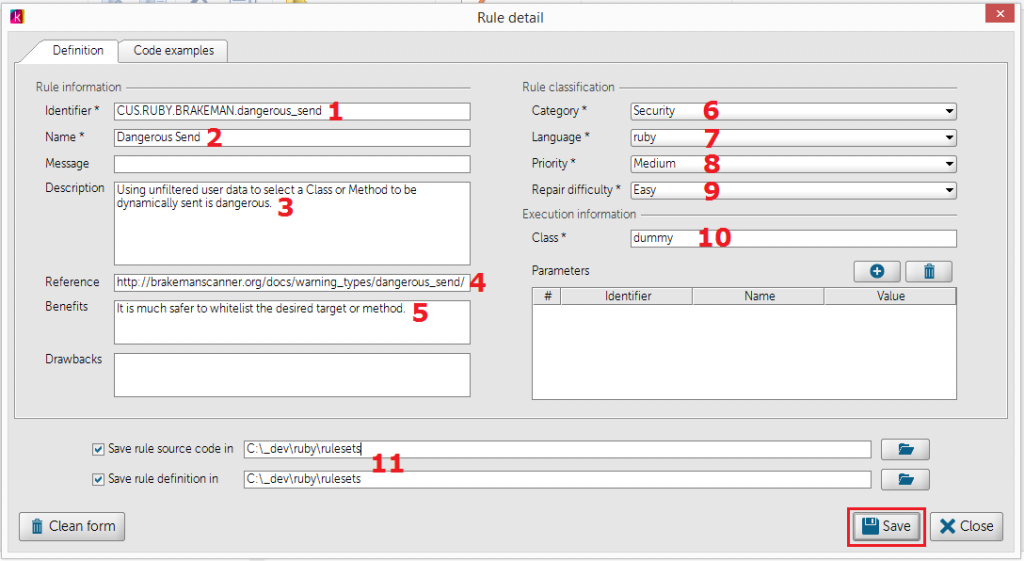

Once we save the definition, the file CUS.RUBY.BRAKEMAN.dangerous_send.rule.xml appears in the target folder.

<?xml version="1.0" encoding="UTF-8"?>

<rule-definition xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://www.optimyth.com/schema/definitions/rule" version="1.0">

 <rule id="CUS.RUBY.BRAKEMAN.dangerous_send">
   <java-class>dummy</java-class>


   <java-version>1.6</java-version>


   <tags></tags>


   <reference><![CDATA[http://brakemanscanner.org/docs/warning_types/dangerous_send/]]></reference>


   <parameters/>


   <code-examples>


     <code-example id="codeExample"/>


   </code-examples>


   <incompatibilities/>


   <related-rules/>


   <criteria-values>
     <criterium-value ref="OPT.CRITERIUM_VALUE.LANGUAGE_PARSER.RUBY"/>
     <criterium-value ref="OPT.CRITERIUM_VALUE.PRIORITY.MEDIUM"/>
     <criterium-value ref="OPT.CRITERIUM_VALUE.REPAIR_DIFFICULTY.LOW"/>
     <criterium-value ref="OPT.CRITERIUM_VALUE.CQM.SECURITY"/>
     <criterium-value ref="OPT.CRITERIUM_VALUE.ENGINE.OTHER"/>
   </criteria-values>


   <i18ns>


     <i18n ref="OPT.LANGUAGE.ENGLISH">
       <name><![CDATA[Dangerous Send]]></name>
       <message><![CDATA[]]></message>
       <description><![CDATA[Using unfiltered user data to select a Class or Method to be dynamically sent is dangerous.]]></description>
       <benefits><![CDATA[It is much safer to whitelist the desired target or method.]]></benefits>
       <drawbacks><![CDATA[]]></drawbacks>
       <parameters/>
       <code-examples>


         <code-example ref="codeExample">
           <ko><![CDATA[method = params[:method]
@result = User.send(method.to_sym)]]></ko>
           <ok><![CDATA[method = params[:method] == 1 ? :method_a : :method_b
@result = User.send(method, *args)]]></ok>
         </code-example>


       </code-examples>


     </i18n>
   </i18ns>
 </rule>
</rule-definition>

When you have many rule definitions to create, doing them all manually, as described above, can be inefficient. In this case, you can develop a simple program to automate the task.

That program should read the source where the 3rd party engine has the definitions and create an XML file for each rule with the above format (one file with all the ruledefs will work as well).

Import this definition to your Kiuwan rules library

To use these new rules in your models you have to import them to your library.

1. Open a new session in Kiuwan
2. Go to Settings > Models Management

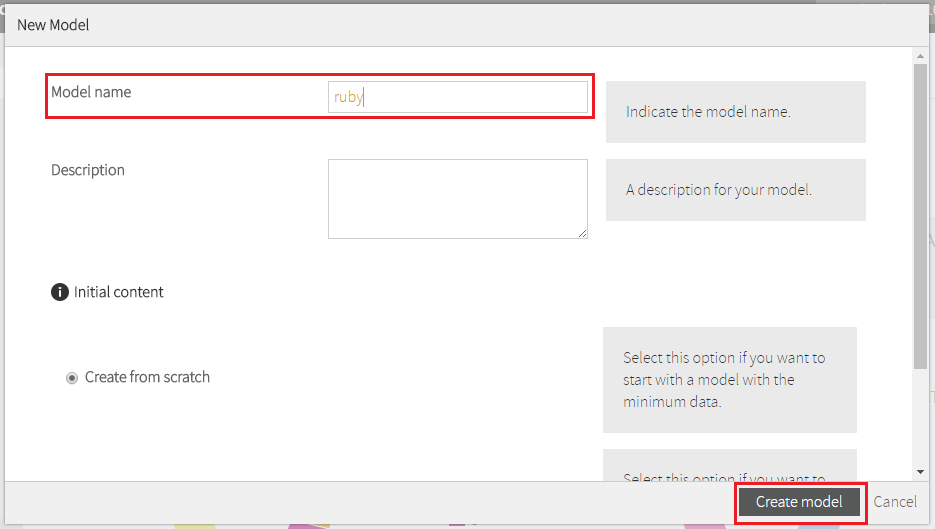

3. Create a new model:

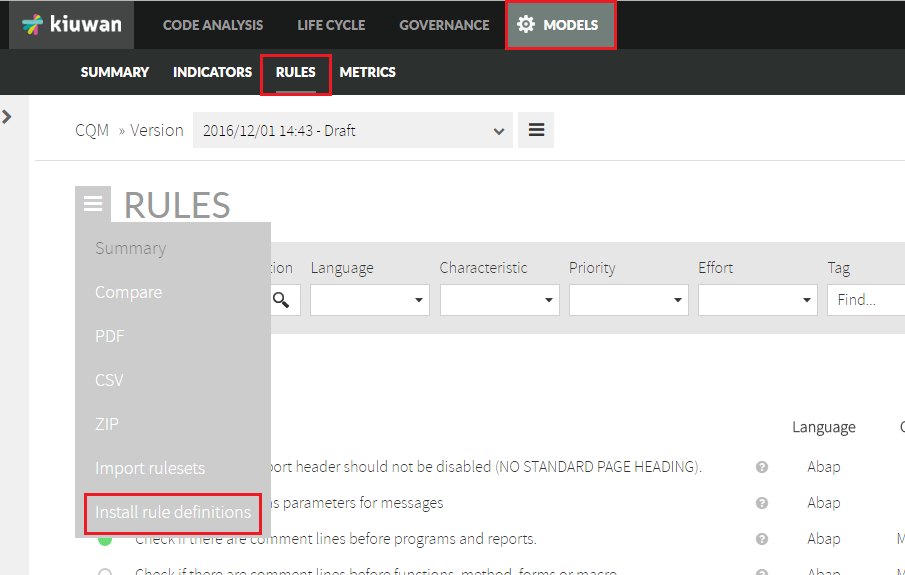

4. In the menu option Rules, click Install rule definitions.

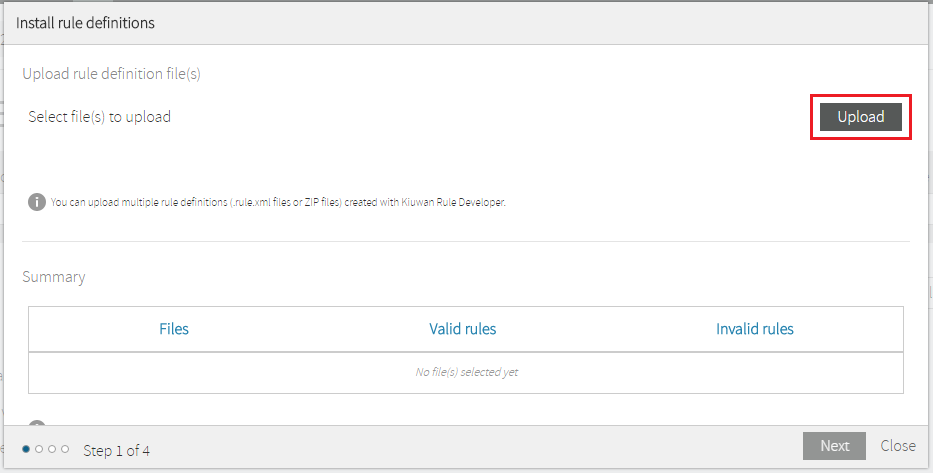

5. Upload your created definition file (or files if you have more than one and want to import them on bulk).

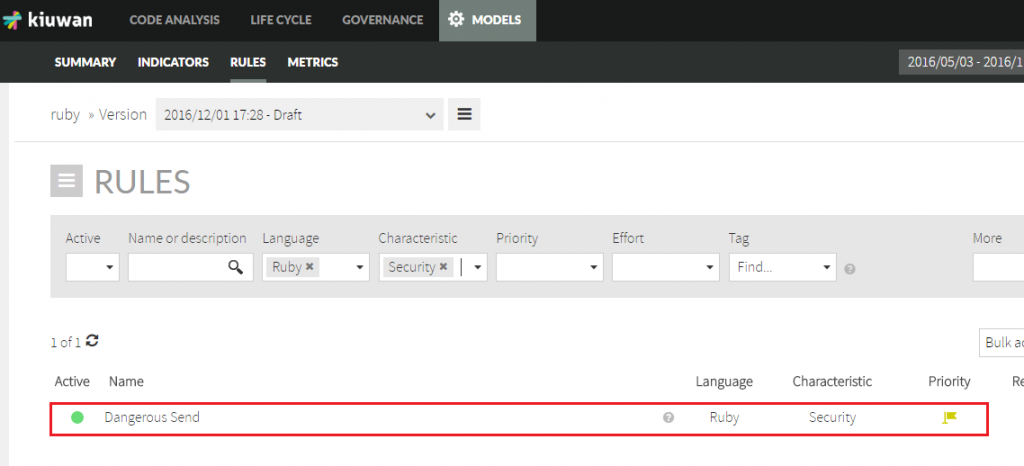

6. Choose the model where you want to include this rule (you can do this in a later step as well). The rule is automatically added to the library and in the selected model (if any was selected).
   From the library you can add it to any other existing models or the ones you create from now on. You don't need to do the import again since the rule definition is already in your library.

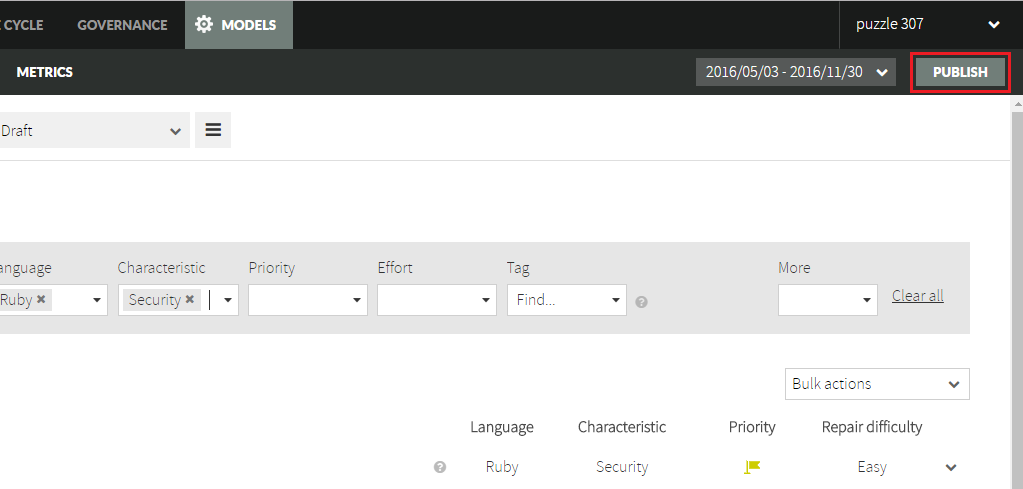

7. Now you can publish the model. This is mandatory if you want to use this model with the Brakeman rule in our analyses.

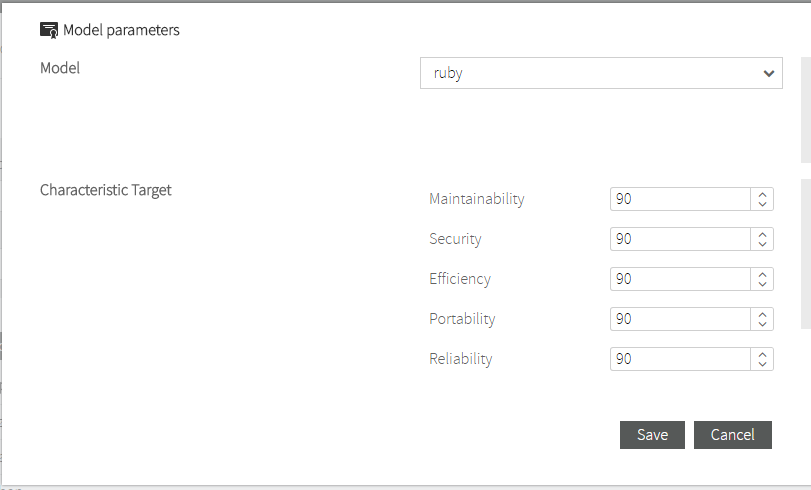

8. To use the model, go to Settings > Application management. You can create a new application and assign this model to it:


Format converter

Before the next steps, you need a converter program to transform the defects report generated by Brakeman to a format which Kiuwan understands. Find detailed information about this format in Third party analyzers.

For Brakeman, the Kiuwan Team has published a sample transformer application in the Kiuwan Github public account.

You can get the application here.

You need the dist/kiuwan-thirdparty-report-importer-0.2.2.jar file.

Analysis of an application

Once you have your converter, you can analyze a Ruby application and see the results in Kiuwan.

This analysis has 3 steps:

1. Analyze the application with Brakeman.
2. Convert the defects report generated by Brakerman to Kiuwan format.
3. Analyze with Kiuwan Local Analyzer to upload the report to Kiuwan.

Analysis with Brakeman

Assuming that the source code of your application is in c:\myapp\src, we should execute:

%RUBY_HOME%\bin\brakeman.bat --format json --out c:\brakeman_report.json c:\myapp\src

The output format of this report is a JSON file:

{
 "scan_info": {
   "app_path": "C:/_github/ruby/rails_admin-master",
   "rails_version": "4.2.0",
...
 },


 "warnings": [
   {
     "warning_type": "Dangerous Send",
     "warning_code": 23,
     "message": "User controlled method execution",
     "file": "C:/_github/ruby/rails_admin-master/app/controllers/rails_admin/main_controller.rb",
     "line": 28,
...
}

Conversion

In this step, you convert the JSON file generated by Brakerman to the XML Kiuwan format. The output file must have 'kiuwan_' as prefix.

java -cp kiuwan-thirdparty-report-importer-0.2.2.jar com.kiuwan.importer.Main Brakeman c:\brakeman_report.json c:\kiuwan_brakeman.xml -base-folder= c:\myapp\src

This is the generated report in Kiuwan format:

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>


<kiuwan>
   <defects>
       <violation>
           <file hashed="false" line="28" name="app/controllers/rails_admin/main_controller.rb">send(params[:bulk_action])</file>
           <rule code="CUS.RUBY.BRAKEMAN.dangerous_send"/>
       </violation>
   </defects>
</kiuwan>
Analysis with Kiuwan

In this last step, you will use the Kiuwan Local Analyzer to upload the report to our server. At the same time, the Kiuwan Local Analyzer will calculate volumetric metrics and will run a duplicated code analysis, which are mandatory in any Kiuwan analysis.

You should include the parameter:

-x, --extended-reports
 Directory where third party reports should be taken from
"%KIUWAN_LOCAL_ANALYZER%\agent.cmd" -s c:\myapp\src -n myrubyappname -c -x c:\path_to_folder_with_kiuwan_brakeman_xml

Ready to get the most out of Kiuwan

In a few minutes we can see the results on Kiuwan.

Select your Ruby application in Kiuwan, and in the Defects screen, you can find the defects detected by Brakeman, in what file and line of code they are and help information (this is the meta information you put in the rule definition) for each imported Brakeman rule.

Additionally, all Kiuwan indicators are calculated taking the Brakeman defects into account. Now you can benefit from all Kiuwan features including the "what if" analysis to create an action plan that may include Brakeman defects, generate PDF reports, share the results with your colleagues, etc...
