This guide will show you how to integrate Kiuwan inspections in your software development cycle using Team Foundation Server.
Requirements
| Requirement | Description |
| Visual Studio 2013 and Team Foundation Server 2013 | Both were installed "on-premises". |
| Kiuwan Local Analyzer | Installed on every machine where a TFS Build Agent is installed. Log into your Kiuwan Account via the KLA to ensure a working connection. Your credentials will be saved in a cipher form for subsequent analysis when they are run from the command line interface as well. Assuming kiuwan has been installed in c:\, we need to create a small script that will be invoked from the TFS build agent. |
| Sample Application | Go to Visual Studio > Help > Samples to download the sample application for this example. |
1. Download the sample application
Download the sample application as described in the requirements.
2. Add the application to Source Control

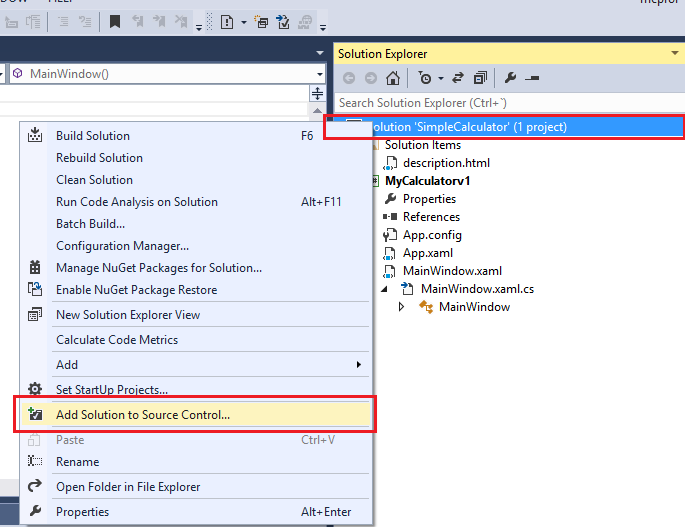

In Solution Explorer, right-click on the SimpleCalculator solution. Then go to Add Solution to Source Control.

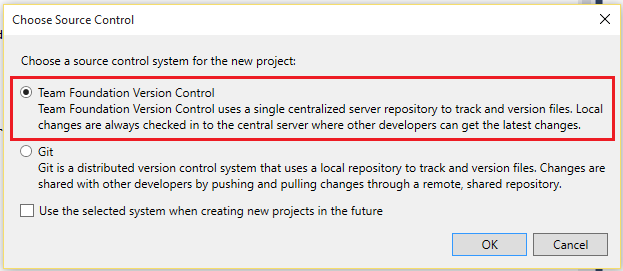

A new dialog appears: Choose Source Control backend. Select Team Foundation Version Control.

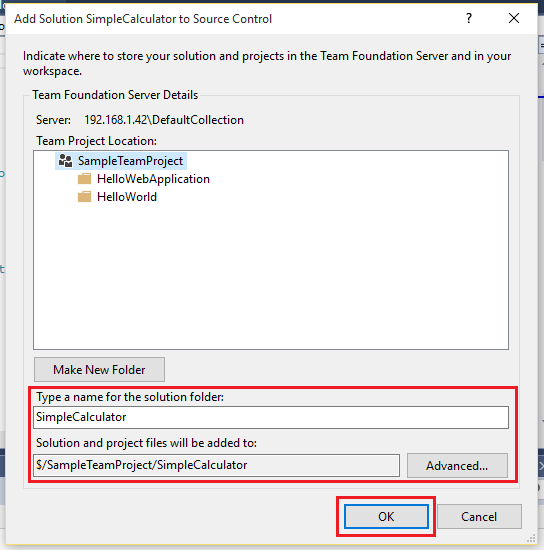

Finally, select a TeamProject where to place this project and create the solution folder.
3. Build definition
Once the solution is created in TFS, define a new build process for the solution.

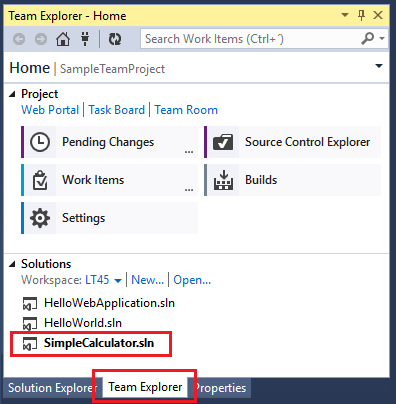

Open the Team Explorer tab.

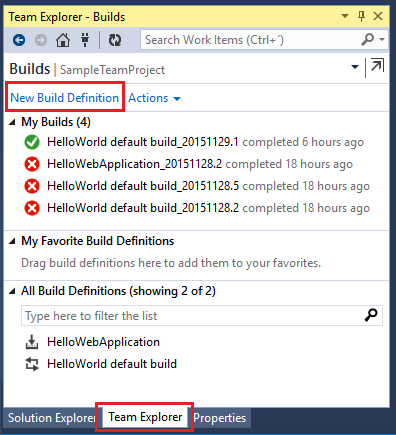

Double-click on Builds and select New build definition.

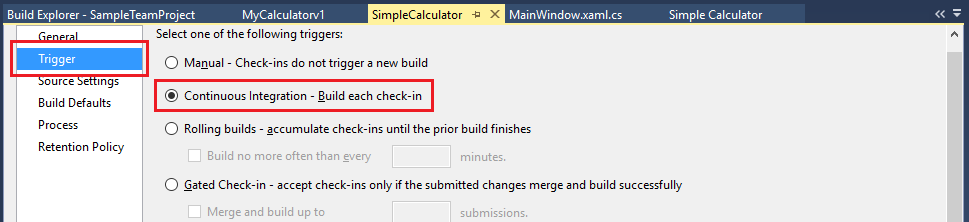

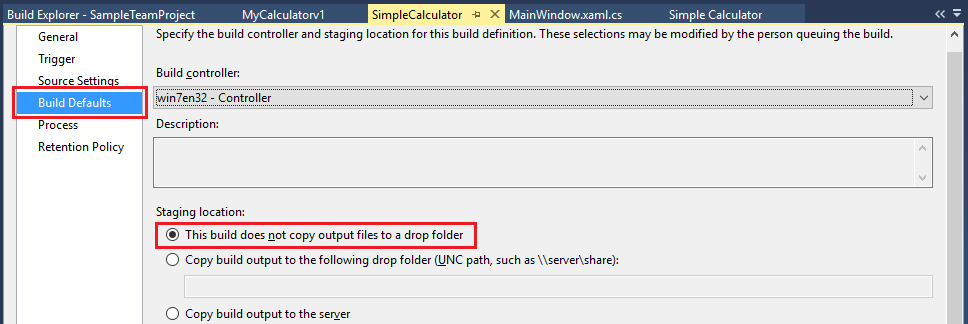

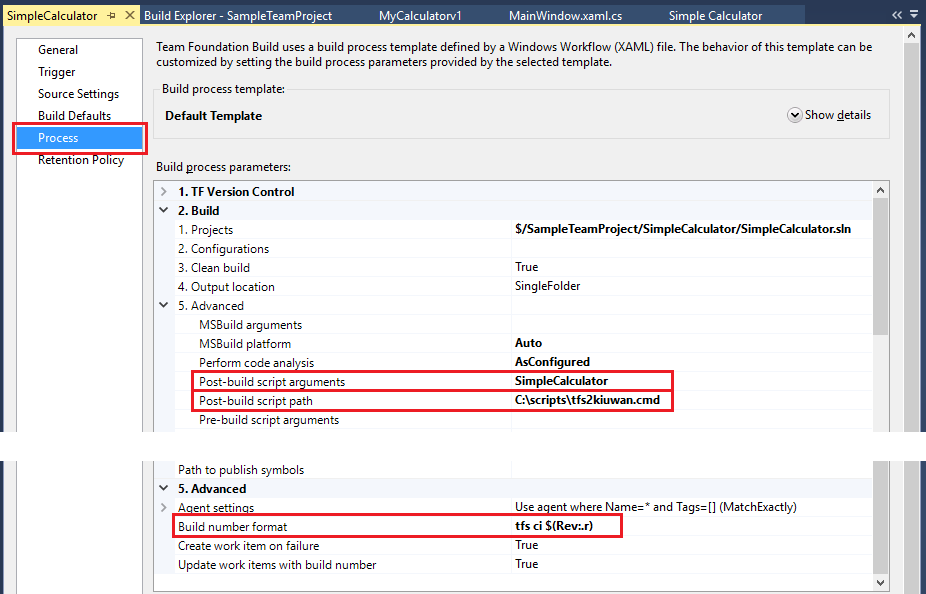

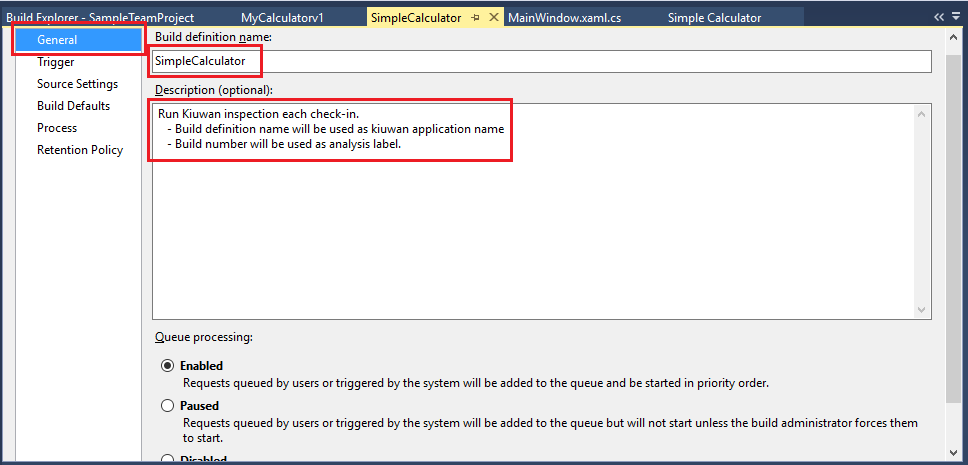

Below are the images of the dialog boxes to configure the build definition:
4. Commit the changes and get the analysis results in Kiuwan
Commit the changes to the repository. A new build will be automatically triggered.

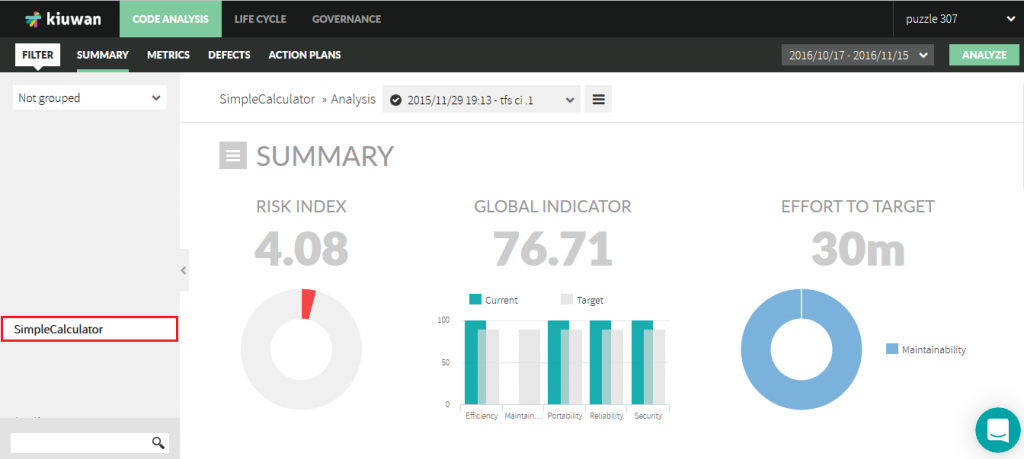

Login to kiuwan.com to see the results for your application analysis.

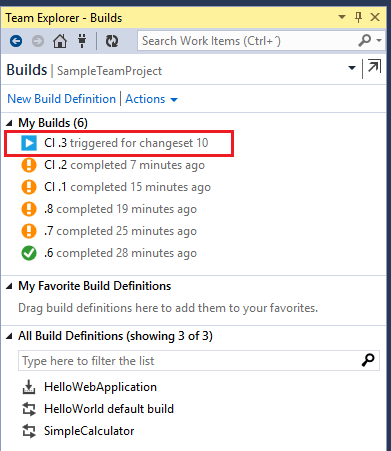

For each commit in the repository, a new build and analysis will be run automatically:
5. Compare each commit against the previous

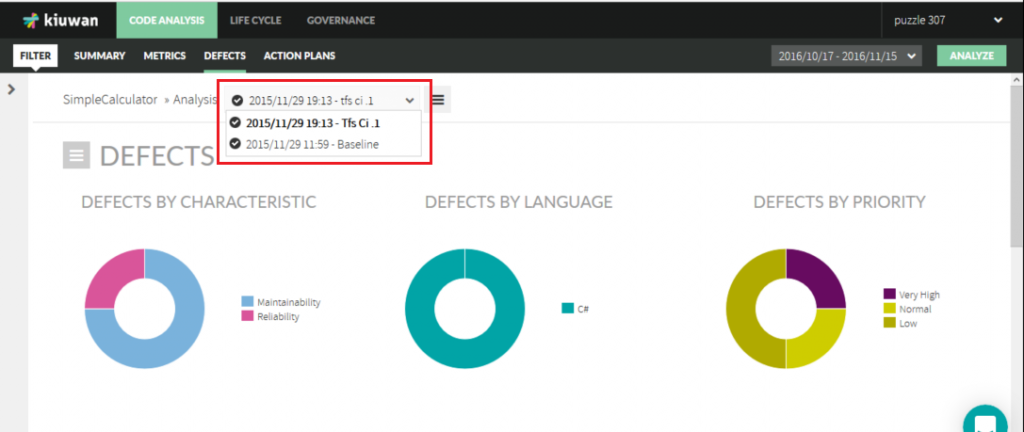

Each analysis will generate a new version in Kiuwan. You can see all the builds in the Analysis drop-down list:

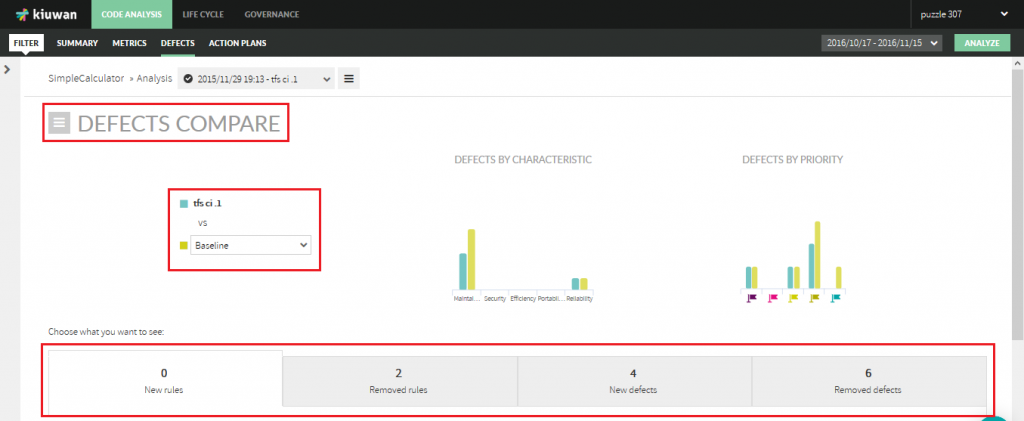

Click Compare to see a defect comparison between both analyses.
Now, you have a continuous analysis of all your builds in Kiuwan.
