Custom Components

A customer will be able to add, modify, and delete custom components. Also, adding their own information about private vulnerabilities and licenses associated with custom components.

The customer can add components to Kiuwan, which may be custom or not. A custom component should be custom when the customer is the component owner or is a modification of the other public component.

For example, a custom component may be:

• Group name: com.my.component
• Artifact name: component-core
• Version: 1.0.0
• Language: java

Hint: Only users granted with Application Management permission are allowed to access Policies Management modules, add custom components, private vulnerabilities, or associate licenses to custom components.

How to manage components in Kiuwan Insights

You can manage components using the REST API defined below Insights Custom Components: https://static.kiuwan.com/rest-api/kiuwan-rest-api.html
Another way is through the Kiuwan website.

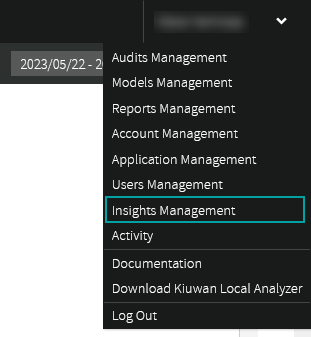

1. Go to Insights Management in the setting menu.
2. Select Custom Components.

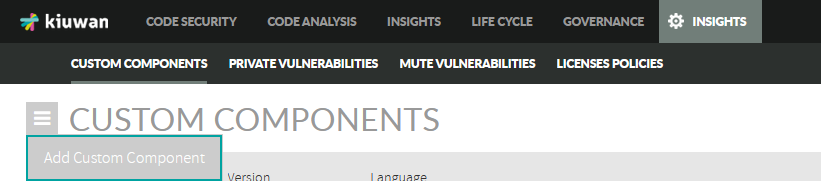

3. You can add new custom components by selecting Add Custom Component, located at the Custom Components hamburger menu.

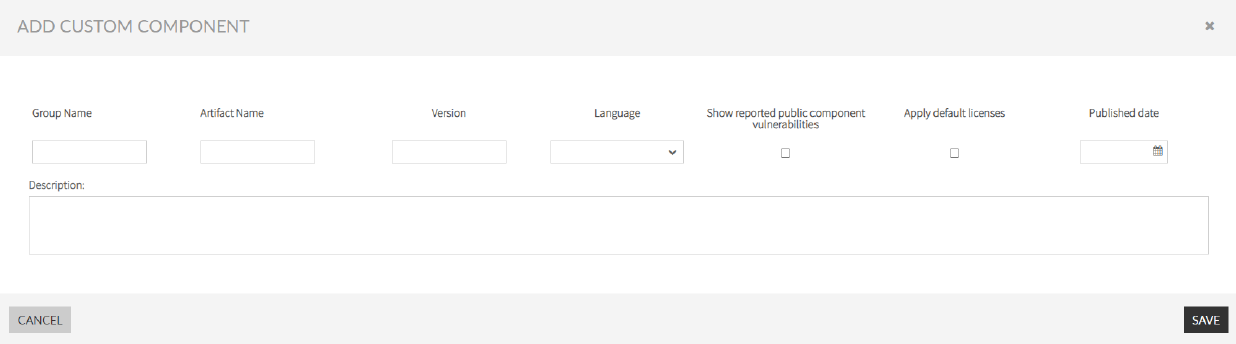

4. In the Add Custom Component screen, fill in the custom component data form.

   Note: The mandatory fields in the ADD CUSTOM COMPONENT form are "Artifact Name," "Version," "Language," and "Published date."

• Show reported public component vulnerabilities: If you check this option, the public vulnerabilities found by Kiuwan will be shown in the Kiuwan analysis that contains these components and the security risk will be calculated with these vulnerabilities and the private vulnerabilities.
• Apply default licenses: If you check this option, the licenses found by Kiuwan will be shown in the Kiuwan analysis that contains these components, and the license risk will be calculated with these licenses and the licenses associated by the customer.
• Click Save.

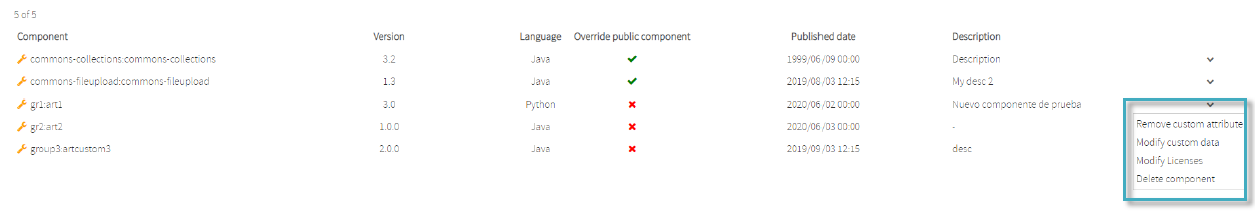

In the list of custom components, you have the following actions:

• Remove custom attribute: Removes the custom attribute, but the component will still exist and the data could be replaced by the public data if the component is public.
• Modify custom data: Updates the custom components data.
• Modify licenses: Modify associated licenses to custom components.
• Delete component: This option is enabled if no public component with the same group name, artifact name, version, or language exists. Also, if the component does not have an analysis.

Remove custom attribute

This action removes the custom attribute, but the component will still exist, and the data could be replaced by the public data if the component is public.

Modify custom data

The option “Modify licenses” modifies associated licenses to custom components. If you select this option, a pop-up opens where you can modify the licenses associated with custom components.

Modify licenses

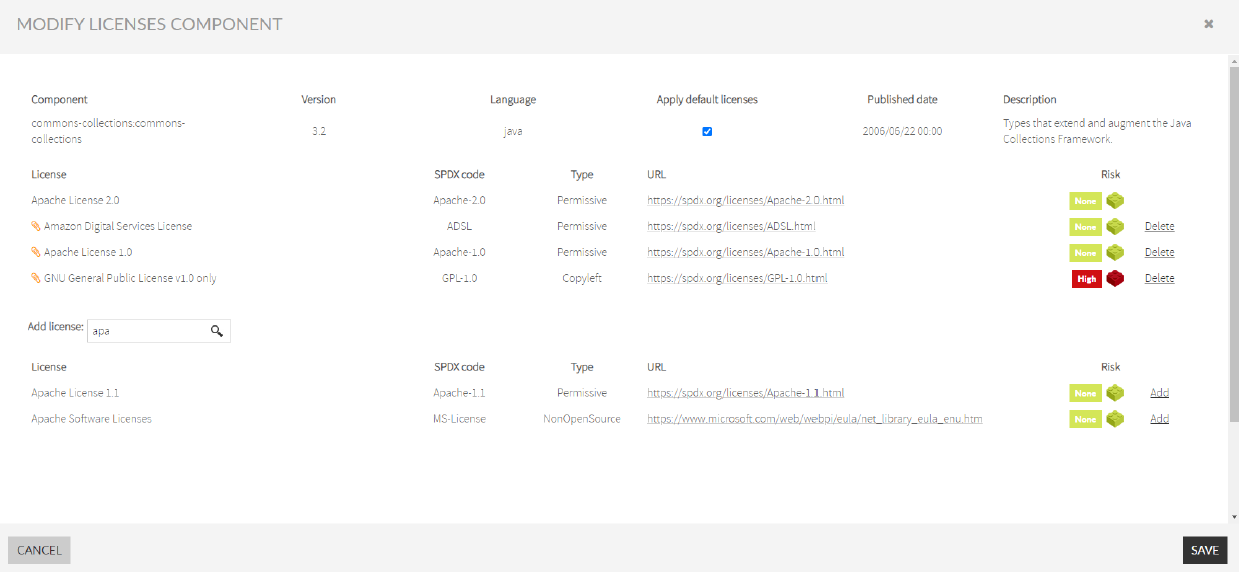

The option “Modify licenses” helps you modify associated licenses to custom components. If you select this option a pop-up opens where you can modify the licenses associated with custom components.

• You can delete associated licenses by the customer or add new licenses, and select if you want to apply for default licenses or not. To delete associated licenses you must click Delete located next to the Risk column.

• Search for new licenses in the Add license search box, and select the licenses by clicking Add located next to the Risk column.
• After you finished modifying the licenses component, click SAVE.

Delete Component

This option will be enabled if does not exist public component with the same group name, artifact name, version, and language, and the component has not been in an analysis

This option deletes the component and it will not appear in the obsolescence data for other components with the same group name, artifact name, and language.

How to manage private vulnerabilities in Kiuwan Insights

You can manage components using the REST API defined below Insights Custom Components: https://static.kiuwan.com/rest-api/kiuwan-rest-api.html
Another way is through the Kiuwan website.
You must go to Insights Management in the settings menu:

1. Go to Insights Management in the settings menu.

2. Select Private Vulnerabilities.

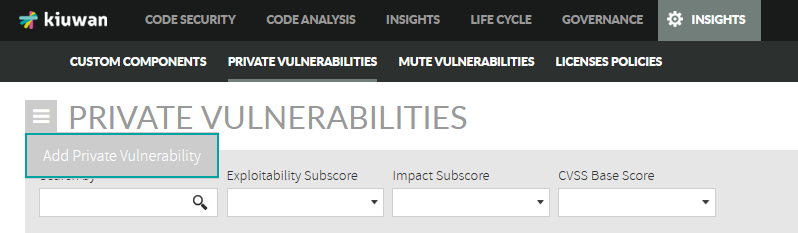

3. You can add new private vulnerabilities by selecting Add Private Vulnerability at the Private Vulnerabilities hamburger menu.

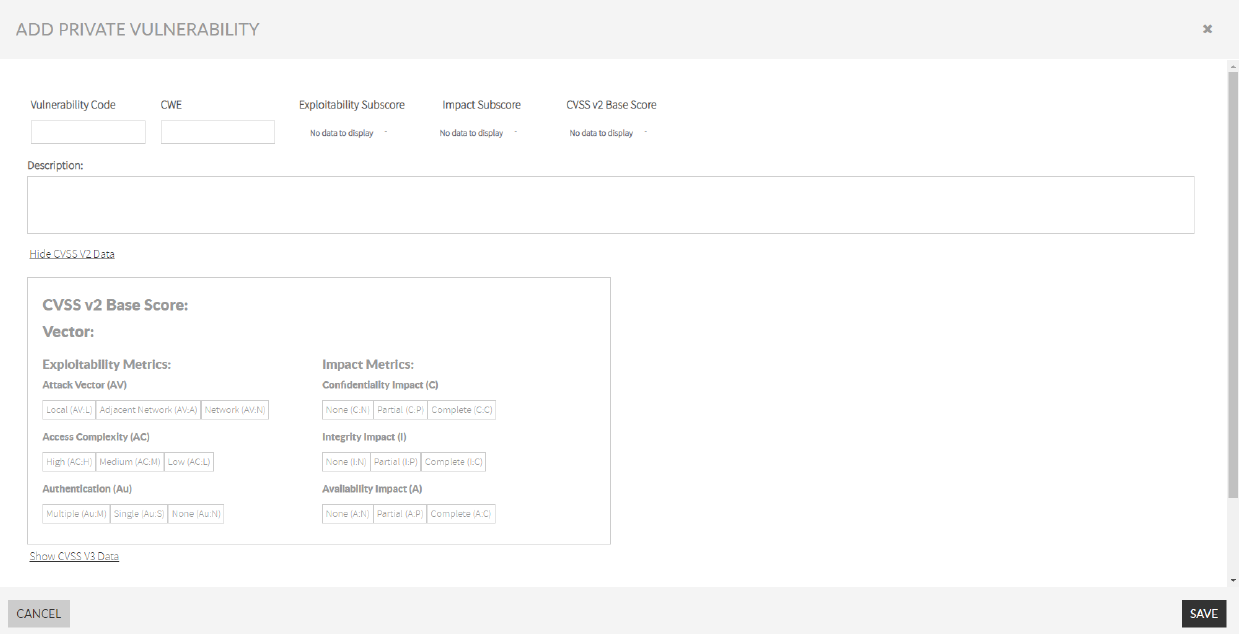

4. In the Add Private Vulnerability screen, fill in the private vulnerability data form.


   Vulnerability code (Mandatory, CWE, and Description): The vulnerability code must be unique.

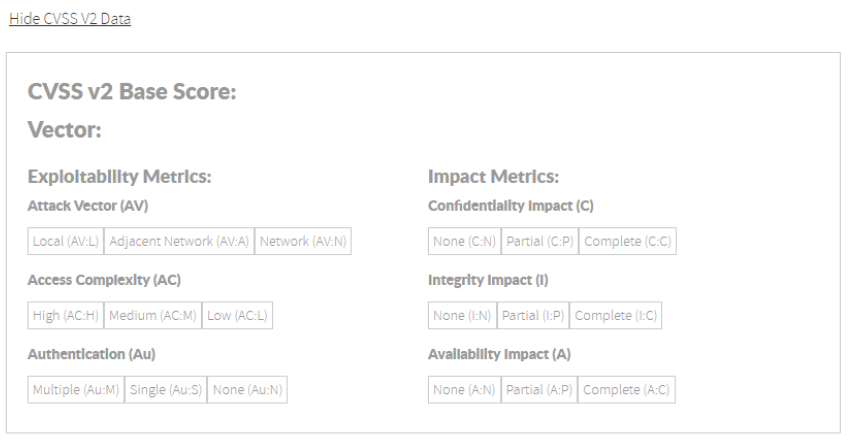

   CVSS v2 section: You can inform the CVSS v2 attack vector for the current private vulnerability.

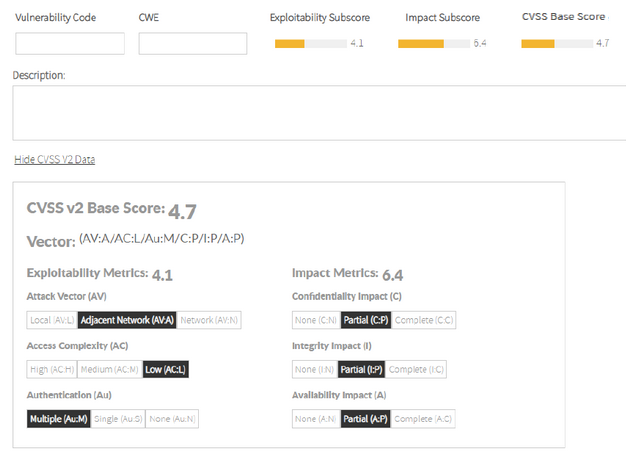

   When you select all the data, the score and sub-score are populated.

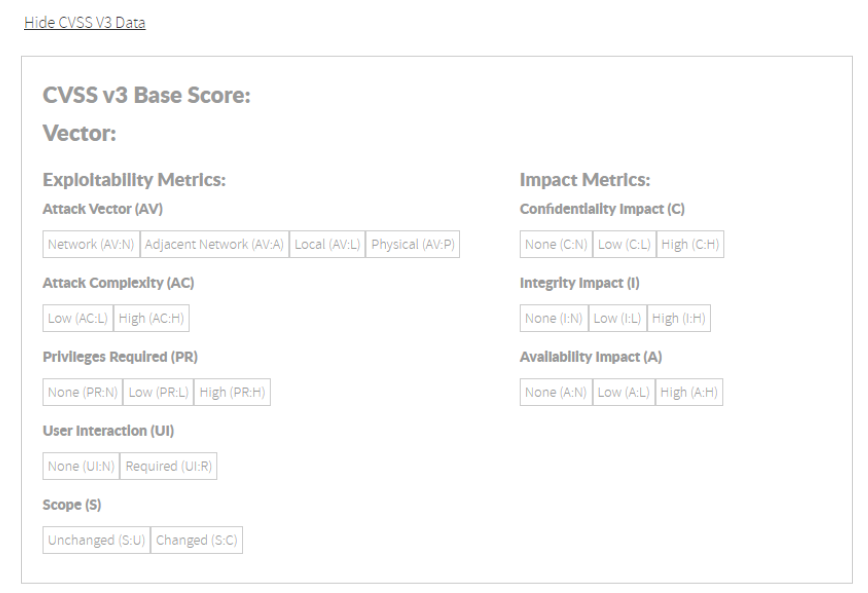

   CVSS v3 section: You can inform the CVSS v3 attack vector for the current private vulnerability.


   Affected components and versions:
   a. Click Add Component to add a new affected component.

   b. Fill in the component information in the available fields. Below, you will find more information on how to fill the Affected Versions.

   Take into account that the Artifact Name and Language fields are mandatory.

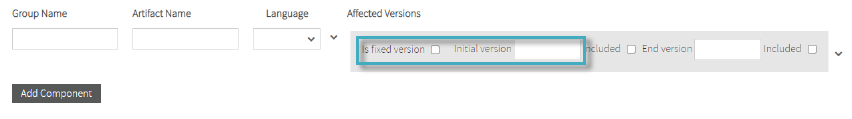

   The affected versions can be fixed versions or range versions:

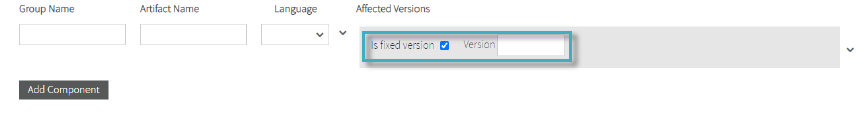

   -  Fixed Version: You must check the Is fixed version checkbox and enter the Field version.

   -  Range Version: You must uncheck the Is fixed version checkbox and enter the Initial version.

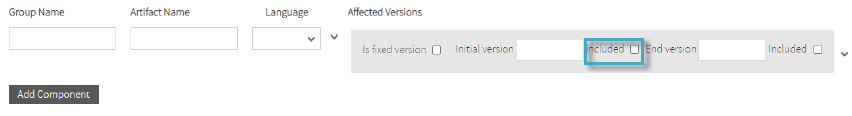

    If the initial version is included you must check the Included checkbox.

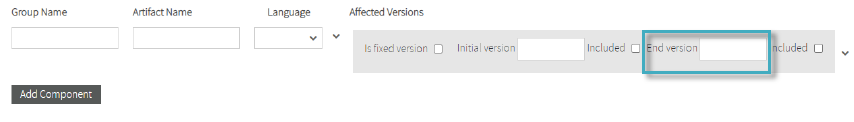

   If the private vulnerability affects all versions from the initial version you must leave the End Version field empty.

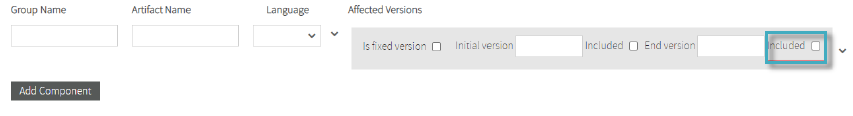

   If the private vulnerability has end affected version, fill in the End version field and if the end version is included in vulnerable versions you must check the Included checkbox.

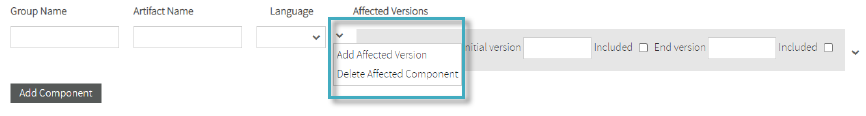

   You can add Affected version or Delete affected component.


   If you select Add Affected Version a new affected version for this component will display.

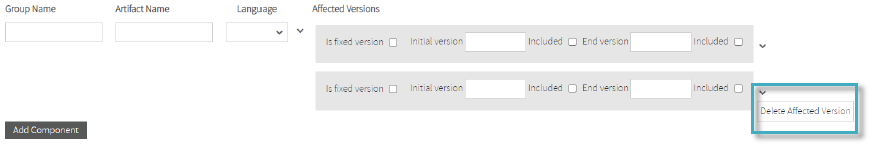

   Also, you can Delete affected versions.


5. After completing the configuration of your private vulnerability information, click SAVE.

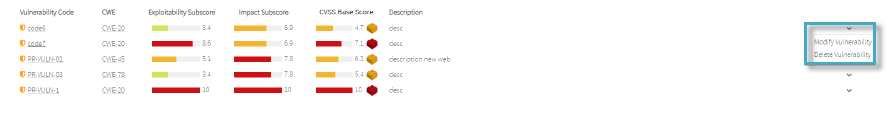

In the list of private vulnerabilities, you have the following actions:

• Modify vulnerability
• Delete vulnerability

Edit custom components, private vulnerabilities, and licenses associated with custom components by the customer

Insights Components

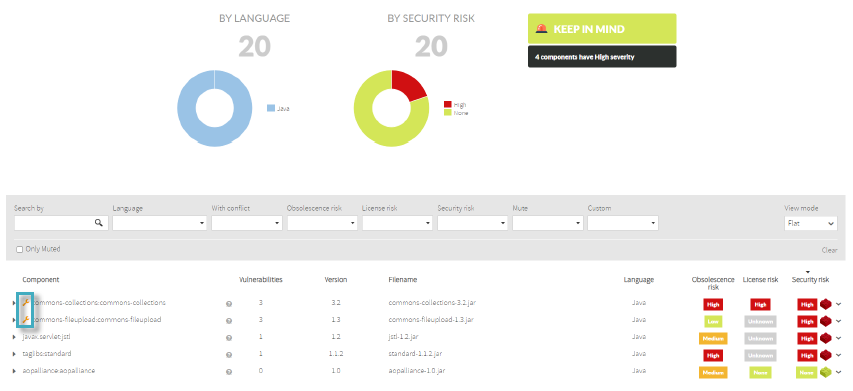

Next to the custom components, the following icon is displayed. Also, the following risks are displayed depending on the custom data:

• Obsolescence risk: Depends on the component date and other custom components with the same group name, artifact name, and language.
• License Risk: Depends on the licenses found by Insights for this component, if you have checked this option, and the associated licenses by the customer.
• Security Risk: Depends on the vulnerabilities found by Insights for this component, if you have checked this option, and the private vulnerabilities affecting this component.

Also, you can filter by Custom components:

The associated licenses are represented by theicon.

The private vulnerabilities that affected this component are represented by the icon.

Insights Obsolescence

Next to the custom components, the icon is displayed. Also, obsolescence risk depends on the custom data:

• Depends on the component date and other custom components with the same group name, artifact name, and language.

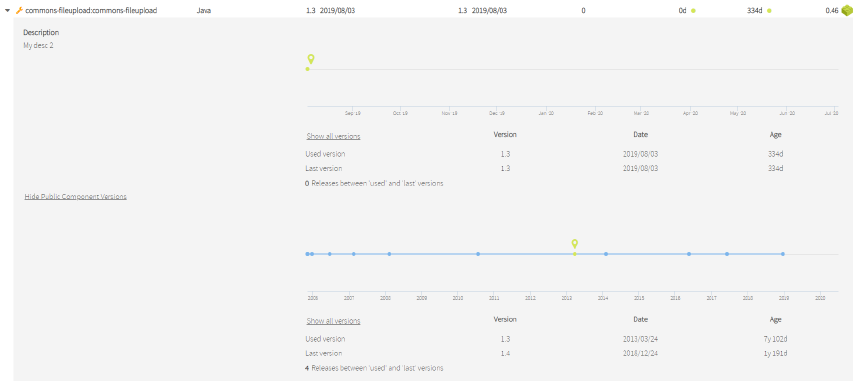

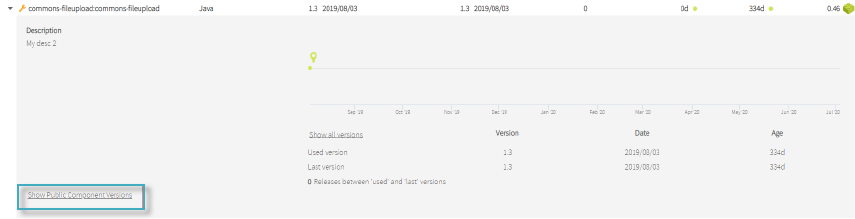

If the component is a copy of another public component, when you display the drill-down, you can see the public data for this component:

You can see the timeline for the public component:

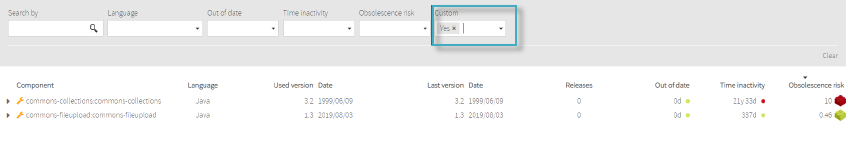

Also, you can filter by Custom components.

Insights Licenses

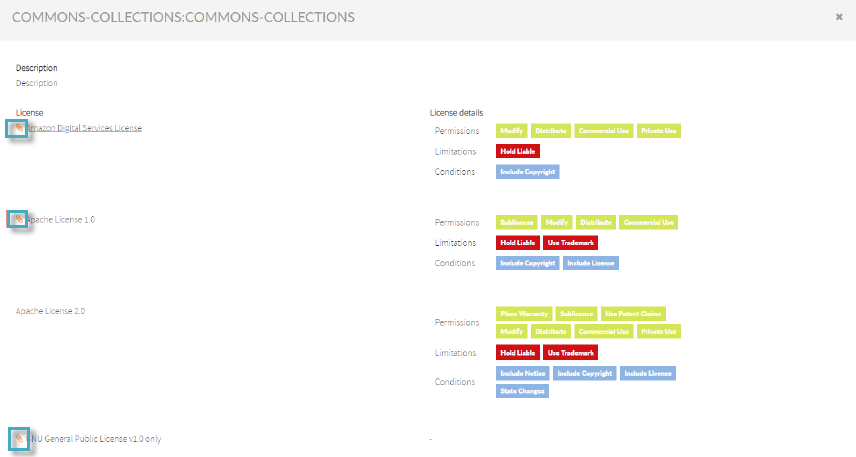

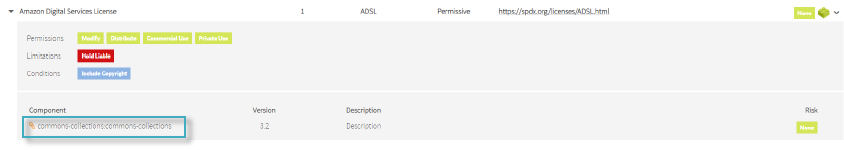

The custom components with licenses associated with the customer have the icon next to the component name:

Insights Security

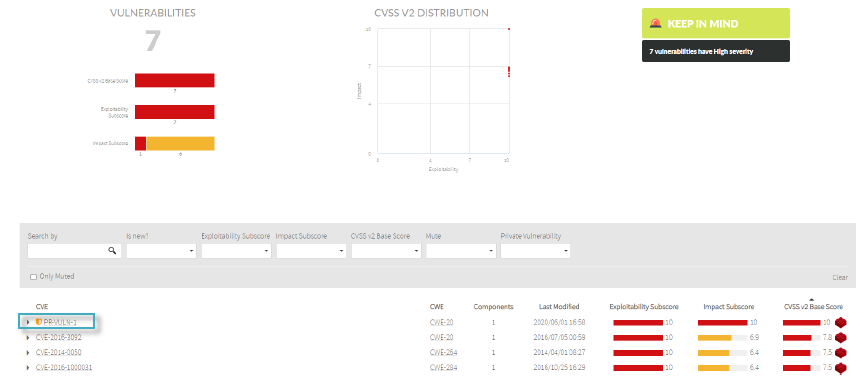

The private vulnerabilities have the icon next to the vulnerability name.

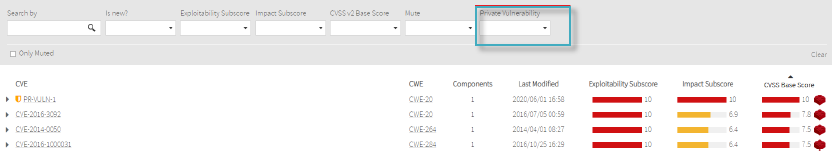

Also, you can filter by Private Vulnerabilites:

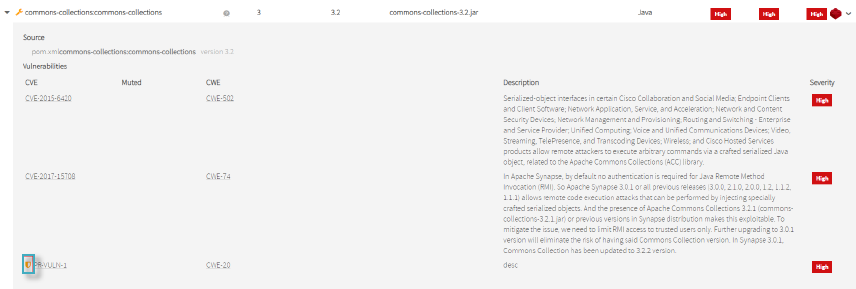

The custom components affected by private vulnerabilities are displayed next to the component name.
