Insights Components – Kiuwan

This section introduces you to the Components tab in Kiuwan Insights.

Components Inventory

Kiuwan Insight analyzes your application software, discovers all external dependencies, and builds a components inventory that lets you track any external piece of code that could be part of your application.

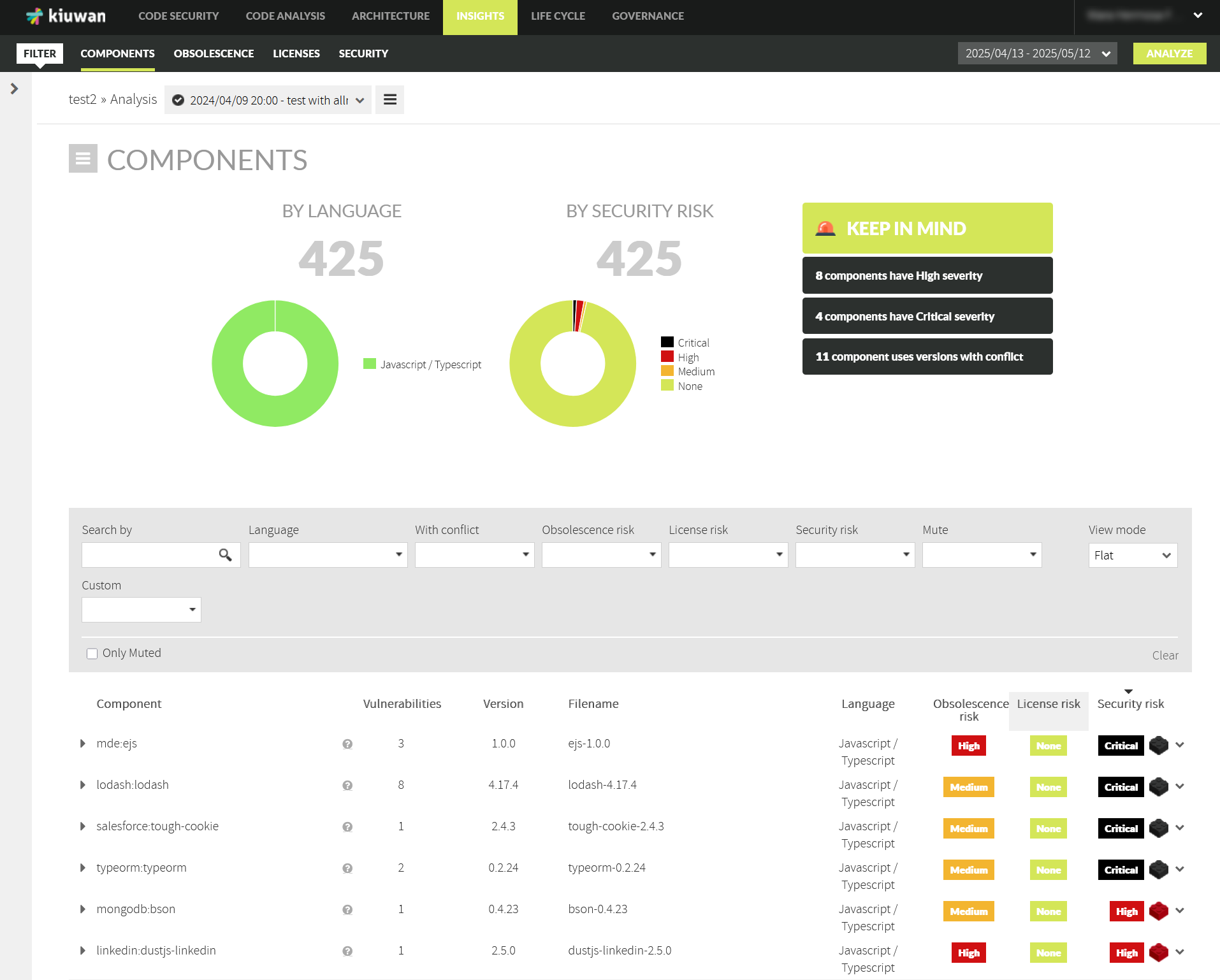

Go to Insights > Components to access the components inventory.

The Components Inventory section shows the following information:

Overall Information on Components – aggregated information on the number and type of components
List of Components – detailed listing of components
Component detail – detailed information on the selected component

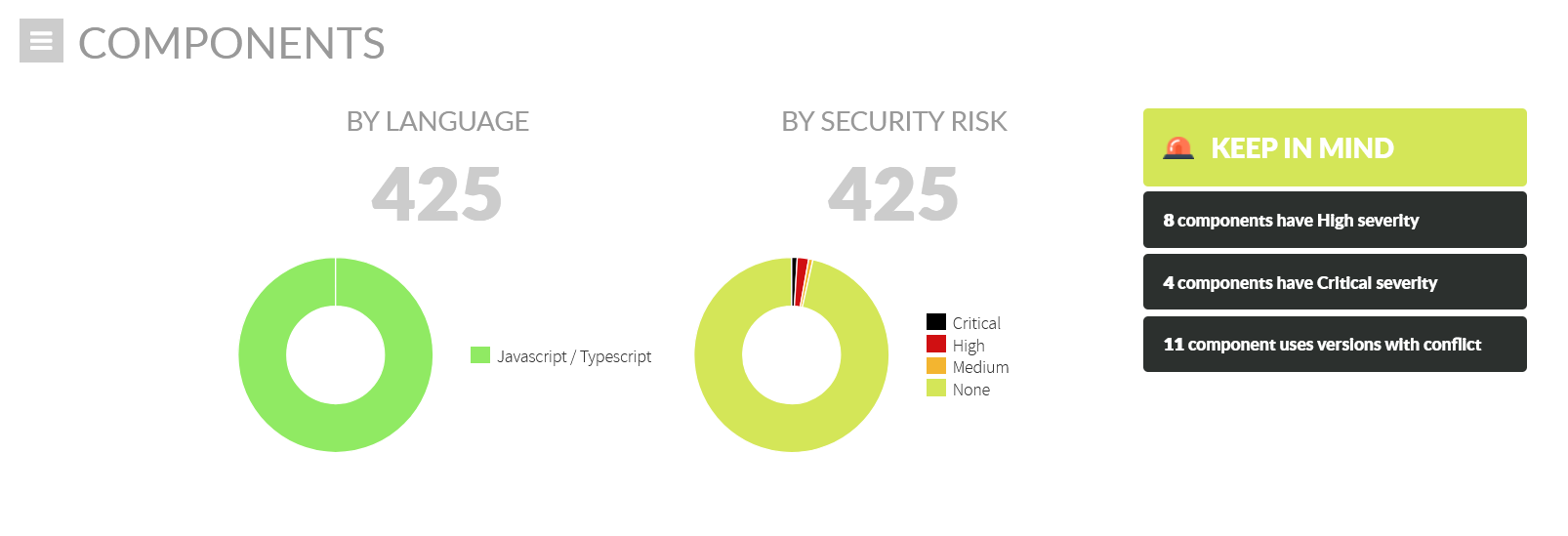

Overall Information on Components

Number of components by language
Number of components by Security Risk level (High, Medium, Low, and None)
Alerts :
- Components with High-Security Risk
- Components being used with different versions that might cause conflicts
- Etc.

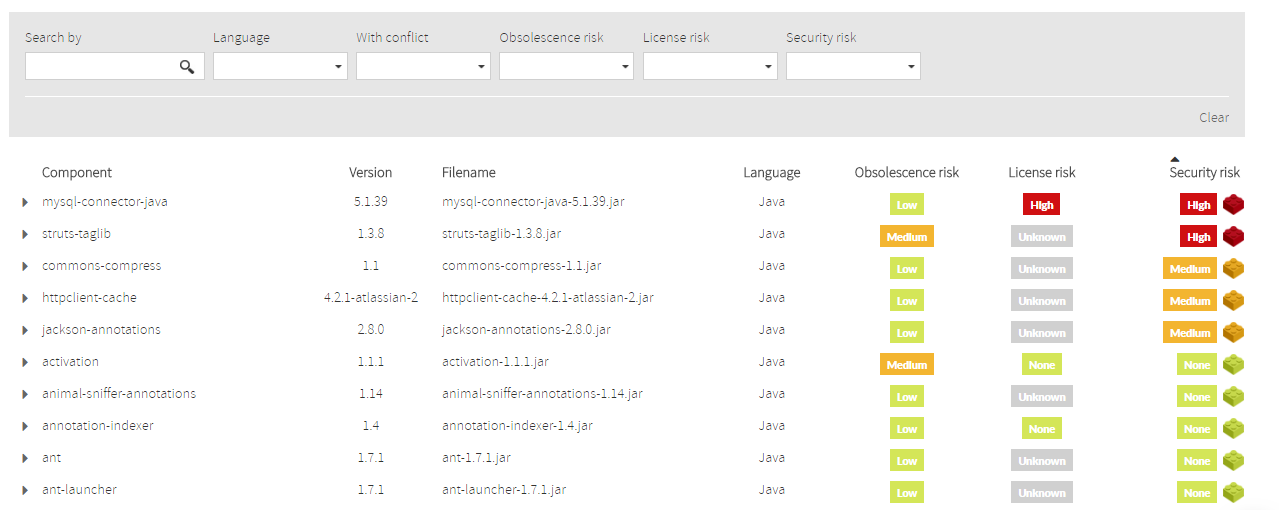

List of Components

Kiuwan Insights provides a full list of all the components your application uses.

For every 3^rd party component, you will have access to detailed component information such as:

Name	Description
Component name	Name of the component
Version	The version(s) in use
Filename	The physical container (.jar, .dll, .js, etc)
Language	The programming language it is written in.
Obsolescence risk	A component’s Obsolescence Risk is a measure of the risk level relative to: the antiquity of your version for the latest version, and how active is the component Both values are combined in the Obsolescence Risk to provide a value of the risk associated with using outdated or “dead” components. Please visit Obsolescence Risk for further information.
License risk	A component’s License Risk is a measure of the risk level relative to the legal implications of used components’ licenses. Please visit Insights Licenses for further information.
Security risk	A component’s Security Risk is based on CVSS v2 Base Scores (Severities) of its vulnerabilities: If the selected component has more than one vulnerability, Kiuwan will label the component with the highest severity value of all the vulnerabilities of the component. If the selected component has only one vulnerability, the Severity of that vulnerability will be the Security Risk of the component.

Component details

By clicking on a component, you will have access to the following information:

The description of the component
The license of the component
Found vulnerabilities of the selected component:
- CVE identifier, and link to NIST National Vulnerability Database desc page
- CWE type, and link to MITRE Common Weakness Enumeration desc page
- Vulnerability description
- Severity (more on this at Security Risk )

Duplicated components

With Kiuwan Insights you can identify different versions of the same component your application uses.

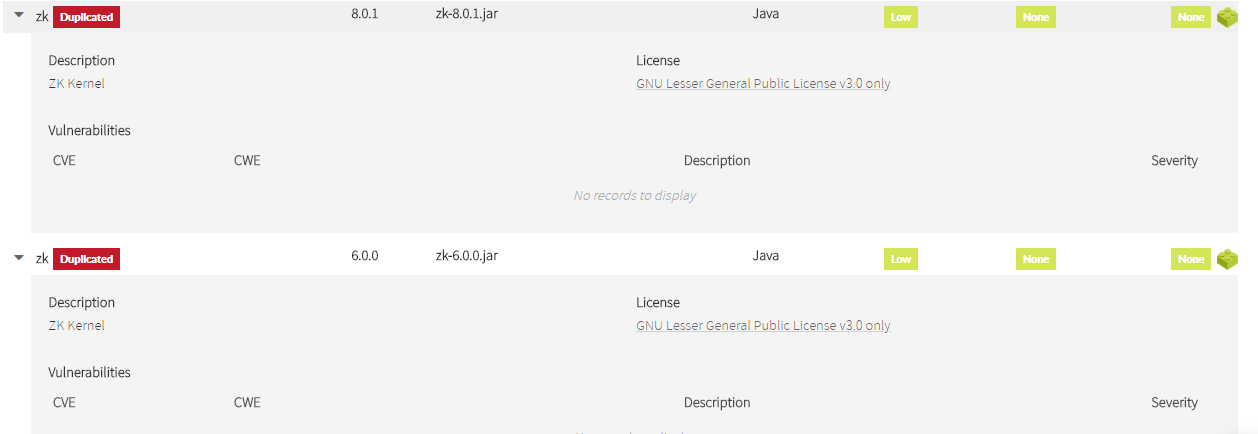

The example below shows that the analyzed application incorporates two different versions of ZKoss common library: 8.0.1 and 6.0.0

Most probably, this component duplication is not intended, and it’s something that would produce maintainability headaches when upgrading to a newer version of the library.

Software Bill of Materials (SBOM)

A Software Bill of Materials (SBOM) report is an inventory of package dependencies within your application. SBOMs provide detailed information about your application’s dependencies, including licensing, version numbers, and transitive dependencies, allowing teams to maintain compliance with licensing and regulatory requirements, respond to vulnerability reports and incidents, and improve transparency and trust with partners and customers.

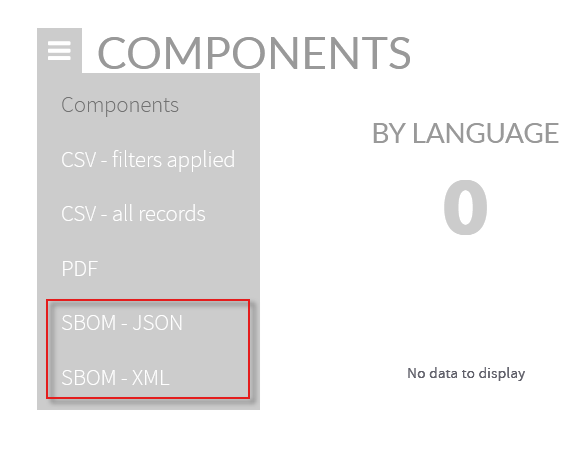

Kiuwan also supports exporting your components as a Software Bill of Materials (SBOM) report. To export the report, open the menu next to Components and select SBOM - JSON or SBOM - XML

This export will follow the CycloneDX specification and include all required fields. These exports are also available via the Kiuwan API.

Below is an example of the output you will receive:

{
  "bomFormat" : "CycloneDX",
  "specVersion" : "1.6",
  "serialNumber" : "urn:uuid:94bcce8b-8c09-45b8-9d27-000f02394af6",
  "version" : 1,
  "metadata" : {
    "timestamp" : "2025-08-08T14:36:17.470Z",
    "component" : {
      "name" : "App-1",
      "type" : "application"
    }
  },
  "components" : [ {
    "name" : "jackson-annotations",
    "type" : "library",
    "version" : "2.14.2",
    "description" : "Core annotations used for value types, used by Jackson data binding package.\n  ",
    "group" : "com.fasterxml.jackson.core",
    "licenses" : [ {
      "license" : {
        "id" : "Apache-2.0",
        "url" : "https://spdx.org/licenses/Apache-2.0.html"
      }
    } ],
    "purl" : "pkg:maven/com.fasterxml.jackson.core/jackson-annotations@2.14.2"
  }, …
 ],
  "dependencies" : [ {
    "ref" : "pkg:maven/com.fasterxml.jackson.core/jackson-annotations@2.14.2"
  }, …
 ]
}
